EFNOTE 7X Acoustic Designed Electronic Drum Set, MIDI, w/360 Triggering, 3 Zone, 8ch XLR - Black Oak Wrap

• 3-Zone Crash / Ride Cymbals
• Tru-Motion Hi-Hat
• Kick Drum Pad with Dual-sensors for single/double beater(s)
• Ultra-Compact Sound Module
• Analog 4-ch audio outputs
• MIDI out
• Low latency, wide dynamic-range, consistent and stable triggering
• On-board recording
• MIDI output
• Flexible Audio Routing
• Bluetooth audio-in
• Bluetooth MIDI

Included:

• 1x Sound Module (EFD-7X)
• 1x Snare Drum (EFD-S1455-BO)
• 1x Rack Tom (EFD-T1180-BO)
• 1x Floor Tom (EFD-T1515-BO)
• 1x Rack Tom (EFD-T1180-BO)
• 1x Kick Drum (EFD-K2015-BO)
• 1x Hi-Hat Cymbal (EFD-H14)
• 1x Crash Cymbal (EFD-C16)
• 1x Ride Cymbal (EFD-C20)
• 1x Floor Tom (EFD-T1313-BO)
• 1x Effect Cymbal (EFD-C17FX)
• 1x Splash Cymbal (EFD-C08)
• 1x Brake-Out Cable (EFD-MULTI-AX)
• 1x Brake-Out Cable (EFD-MULTI-B)

Drum / Cymbal Pads

Kick

EFD-K2015

• Size: 20 x 15"
• Finish: Black Oak-ish
• Zone: Head
• Sensor: Multi
• Head: Double-layered mesh with beater patch
• Connector: Head (TRS Phones)
• Features: Wood hoop

Snare

EFD-S1455

• Size: 14 x 5.5"
• Finish: Black Oak-ish
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Birch shell, Colored hoop rubber, Side-Rim

Tom

EFD-T1180

• Size: 11 x 8"
• Finish: Black Oak-ish
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

Floor Tom 1

EFD-T1313

• Size: 13 x 13"
• Finish: Black Oak-ish
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

Floor Tom 2

EFD-T1515

• Size: 15 x 15"
• Finish: Black Oak-ish
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

Hi-Hat

EFD-H14

• Size: 14" (Top/Bottom)
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke) / Optical
• Connector: 6-pin
• Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface

*EFNOTE 7X sound module does not support hi-hat cup zone.

Crash

EFD-C16

• Size: 16"
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

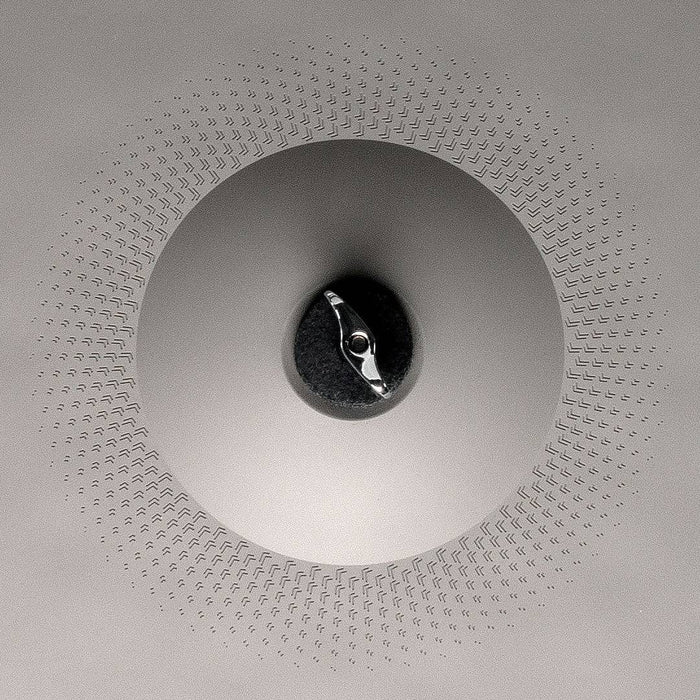

Ride

EFD-C20

• Size: 20"
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Hammered texture surface with fine engravings

Effect

EFD-C17FX

• Size: 17" with 8 holes
• Color: Dark gray
• Zone: Bow / Edge
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge (TRS Phones)
• Features: STAK™ cymbal mount, Weight simulation, Hammered texture surface with fine engravings

Splash

EFD-C08

• Size: 8"
• Color: Warm gray
• Zone: Bow / Edge
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge (TRS Phones)
• Features: Weight simulation, Fine engraved surface

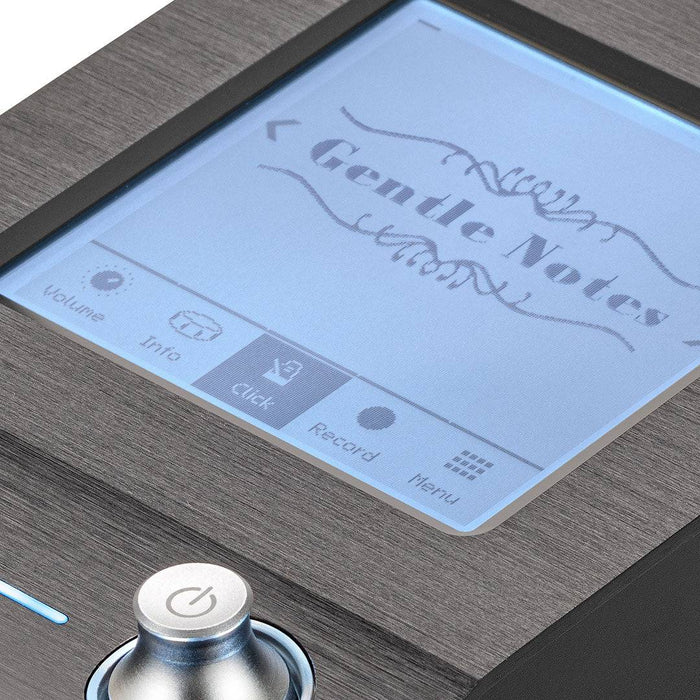

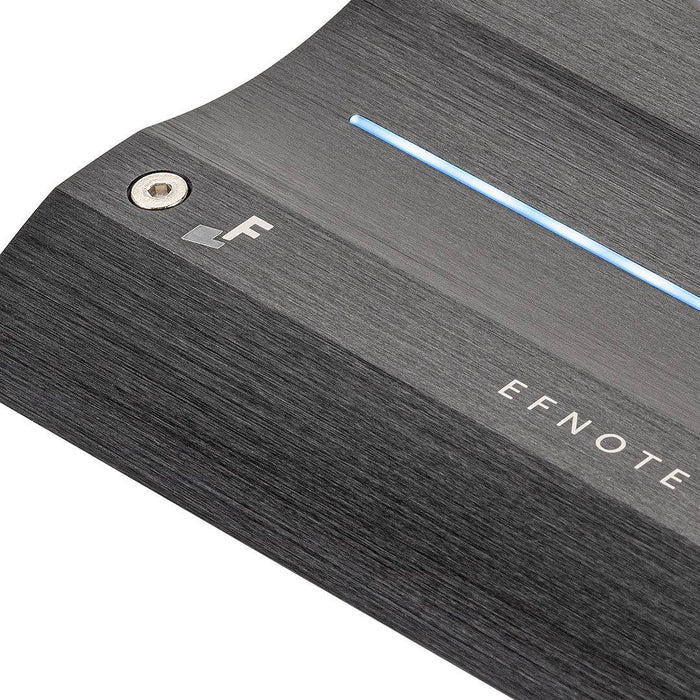

Sound Module: EFD-7X

Trigger Interface

• 3-Zone: Snare, Crash 1/2*, Ride
• 2-Zone: Tom 1/2/3/4, HH, Crash 3
• 1-Zone: Kick

*Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
*In the EFNOTE 7X configuration, the Crash 2 cup is not supported when the EFD-C17FX is used.

Audio / MIDI Interface

• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
• Audio Input: Stereo Mini-Phone (+2dBu Max)
• USB: Micro-B Type USB 2.0 Hi-Speed
  Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
  MIDI: In/Out
• Bluetooth Audio Input
• Bluetooth MIDI In/Out
• MIDI Out: 5-pin DIN

Dimensions

• 106 (W) x 172 (D) x 47 (H) mm
• 700 g

*Excluding protrusions

Power

• DC 12 V, 500 mA (Nominal) / 800 mA (Max)

Hardware

Snare Drum Stand

EFD-SS5

• For 12" to 14" diameter snare drums
• Geared basket tilter
• Double braced legs
• Tube diameter: φ19.1 mm (3/4")
• Height adjustment range: 500 -- 650 mm

Cymbal Stand

EFD-CS5

• Boom cymbal arm
• Geared tilter
• Cable holder
• Middle tube diameter: φ19.1 mm (3/4")
• Boom length: 400 mm
• Height adjustment range: 800 -- 1,500 mm

Drum Kit Placement

Placement Size

• Approx. 170 (W) x 125 (D) cm
• Approx. 5.6 (W) x 4.1 (D) feet

*Without drum throne

Package

Accessories

• Brake-out cable: EFD-MULTI-AX
• Brake-out cable: EFD-MULTI-B
• 4x Trigger cable 3.0 m: EFD-TRS-LL3
• Cymbal mount extension for STAK™
• Quickstart guide

*Kick pedal, hi-hat stand and drum throne are sold separately.

Specification and design are subject to change without prior notice.

Some of technologies and designs are under patent pending.
